Purchase guide - Vespa 50HP

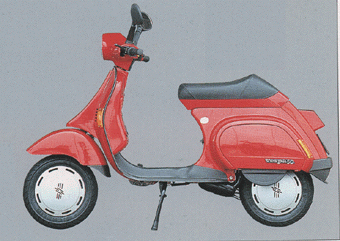

50HP

50HP

This scooter is the last of the geared 50cc machines.
The crankcase is similar to the vintage series and the older PK models, but on the HP series the cylinder is aluminum.
The electrical system is 12v. The gearchange has the same rod system as the Cosa 2, and a similar clutch, which makes the clutch is very smooth.

The 50HP was a budget model, and a spare tyre was not provided, but can be bought separately.

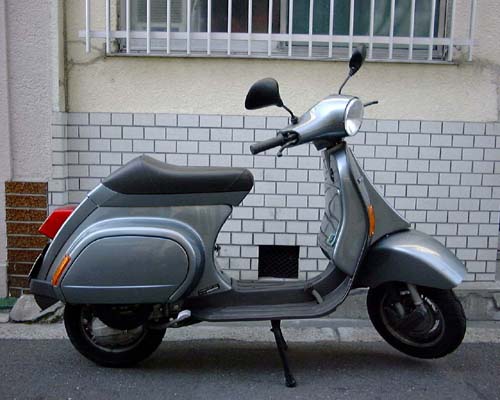

Right Hand Side

Left Hand Side

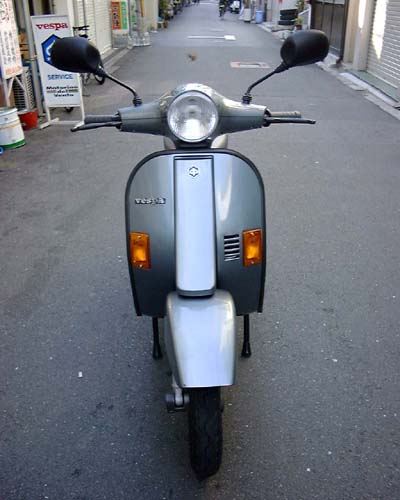

Front view

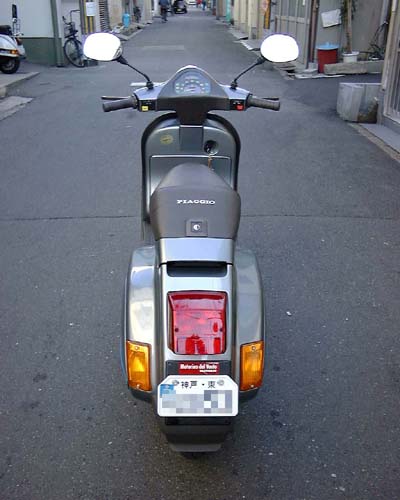

Rear view

Instruments

Gear change

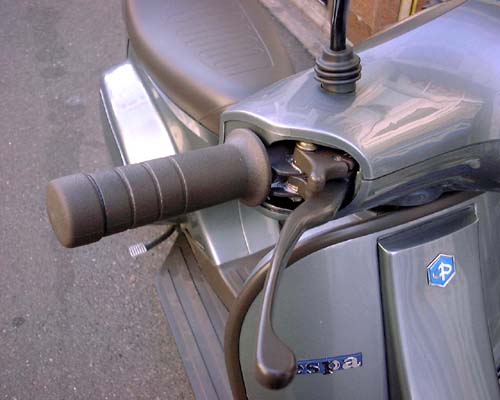

Throttle

Light Switch

Headlight

Indicator & Horn

Front End

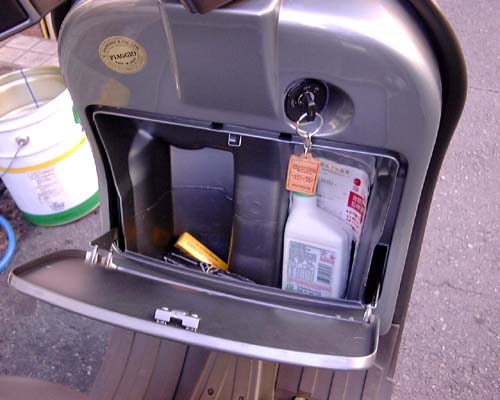

Front box

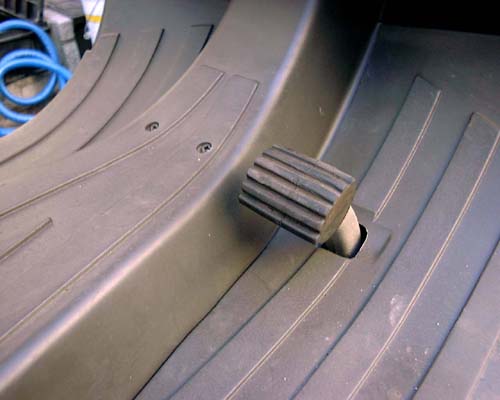

Foot brake

Seat

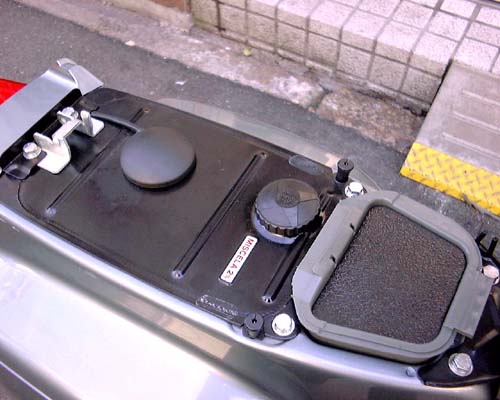

Tool box

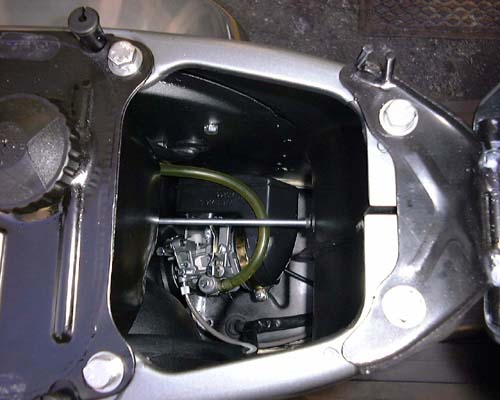

Carburettor

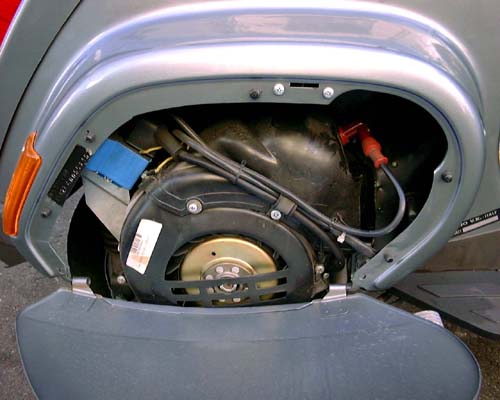

Engine

Kick starter

Exhaust

[ Specification ]
Type designation V5N2T
Top speed 60km/h
Engine 49.77cc bore 38.4mm stroke 43mm two stroke rotary valve
Starting system Electric start and kick starter
Ignition system CDI contactless type flywheel magnetic 12v/80W
Battery for starting 1C$2v/5A
Lubricating system Mixture
Fuel consumption 55km/l (CUNA)
Tank capacity 5.8l
Gearbox 4 speed twist grip
Tyre size 3.00x10 "
Total length / full-width / total height 1,695mm/700mm/1,175mm
Weight 90kg
Price \285,000
